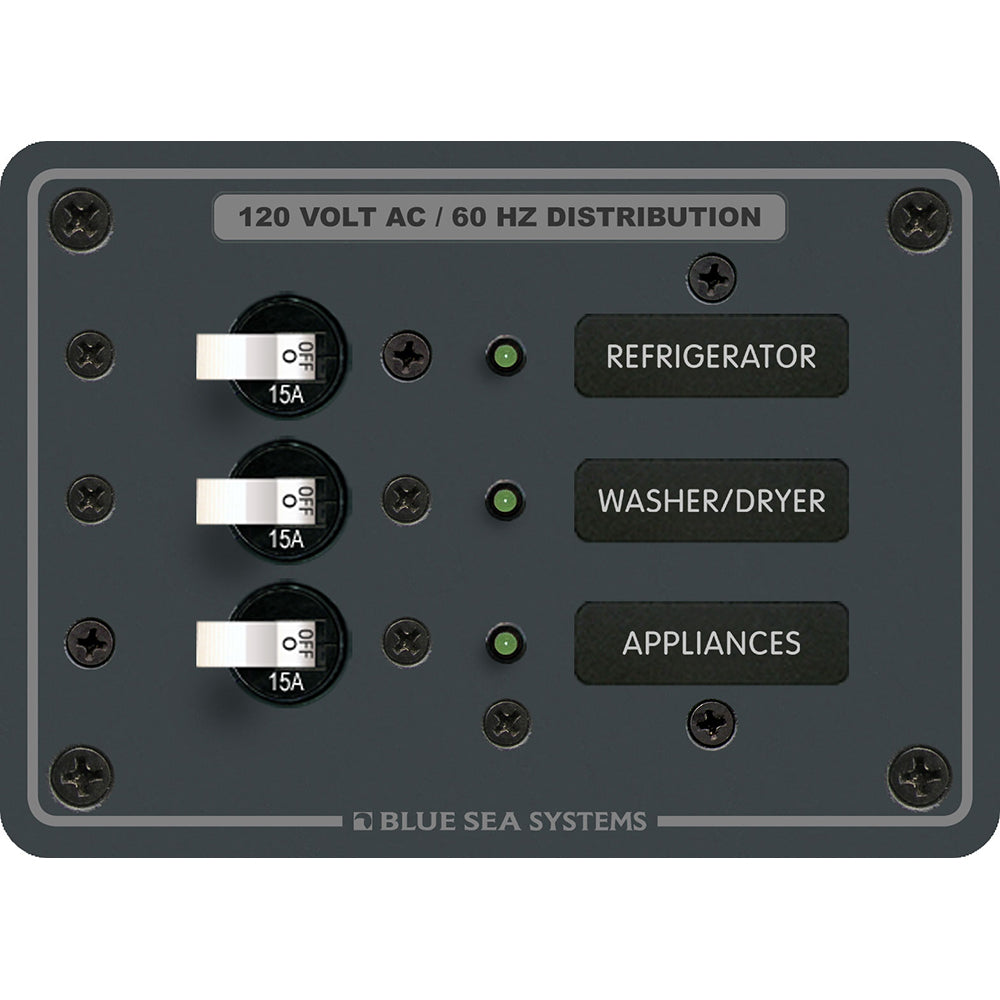

8058 AC 3 Position Toggle Circuit Breaker Panel - White Switches
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
- Positions: 3
- Nominal Voltage: 120v AC
- Maximum Amperage: 100A
- Height: 3.75"
- Width: 5.25"
- (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (3) 8034 LED - 120V AV Green
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Owner's Manual (pdf)
- AC/DC: AC
- Max Breaker Quantity: 3
- Voltage: 120v
- Box Dimensions: 5"H x 7"W x 9"L WT: 1.2 lbs
- UPC: 632085080587
