Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077]

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel [8077]

Regular price $153.43 Sale price $108.99

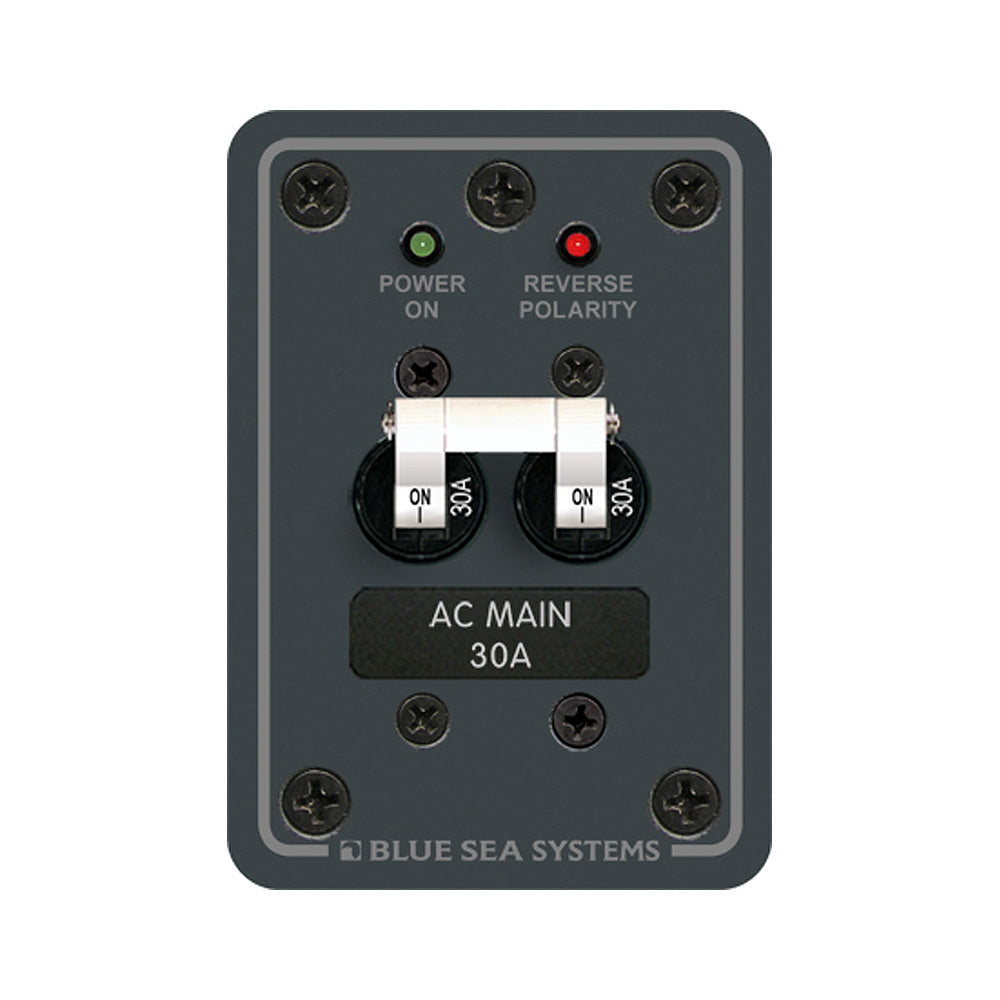

8077 AC Main Only Toggle Circuit Breaker Panel

Features:

  • Red reverse polarity indicating LED
  • Safety ground screw on panel back
  • Combines switching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition

Specifications:

  • Nominal Voltage: 120v AC
  • Maximum Voltage: 277v AC / 65v DC
  • Height: 3.75"
  • Width: 2.63"

Included:

  • (1) 8034 LED - 120v AC Green
  • (1) 8066 LED - 120v AC Red
  • (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 1
  • Voltage: 120v
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.7 lbs
  • UPC: 632085000004
