Lenco 102 Series Standard Actuator - 12V - 4-1/4" Stroke [15059-001]
102 Series Standard Actuator - 12V - 4-1/4" Stroke w/Hardware

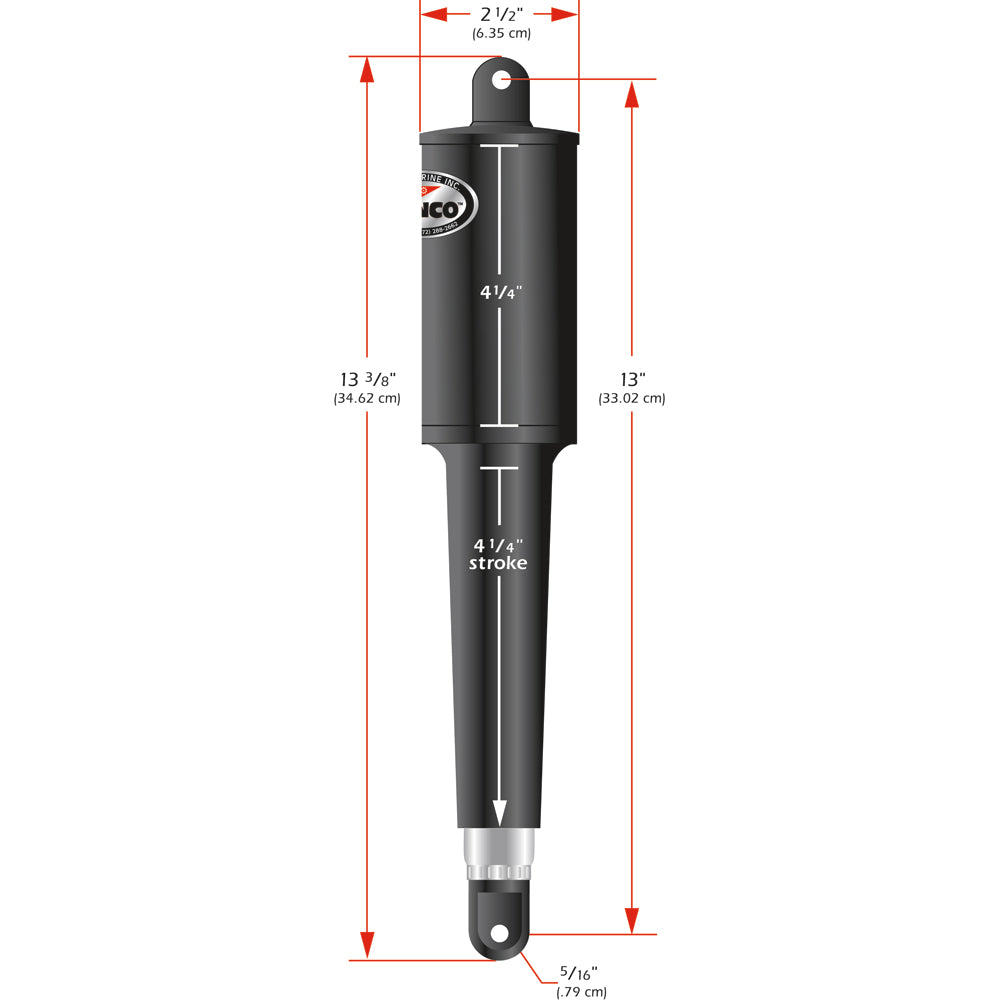

The 102 Actuator is used with Trolling Tab systems sold prior to 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 14 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
Stronger top cap and mounting clevis design
Improved pressure-tight torx screws
Integrated wiper seal at actuator base
Molded-in brass thrust bearing design
Thicker and stronger motor housing wall
Improved O-Ring design for more consistent seal
Over-molded cable providing a stronger tighter seal
Upper mounting bracket with gland seal
Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
5/16" mounting hardware
6 foot cable
