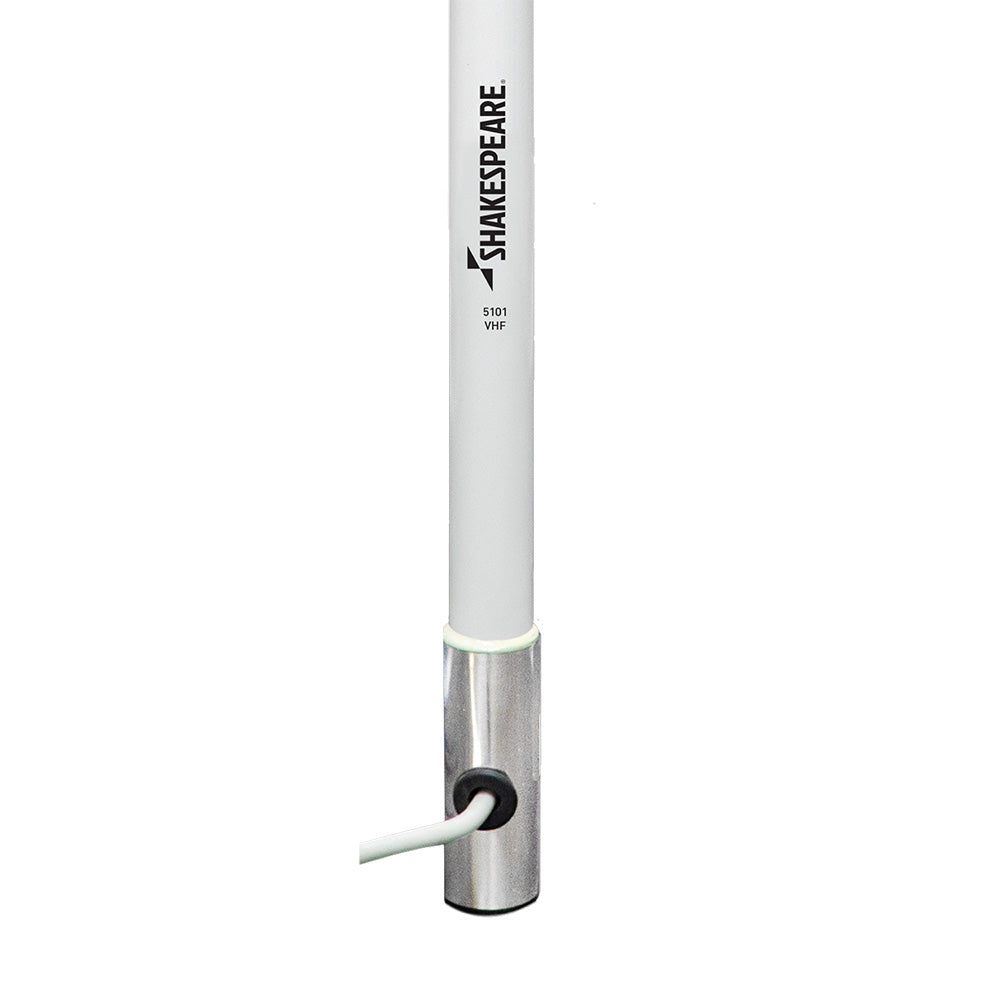

5101 8' Classic VHF Antenna with 15' Cable - Reduced Length Version
END-FED WITH MATCHING STUB
A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.
Brass and copper elements
Chrome-plated brass ferrule with standard 1"-14 thread
Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
Shakespeare Limited Warranty: 2 years
Frequency: VHF Marine Band
Bandwidth: (within 2.0 1 SWR): 5 MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (Ohms): 50
Gain: 6 dB
Max. Input (Watts): 50
DC Ground: YES - however, the antenna will read "open circuit" when tested with ohmeter.
